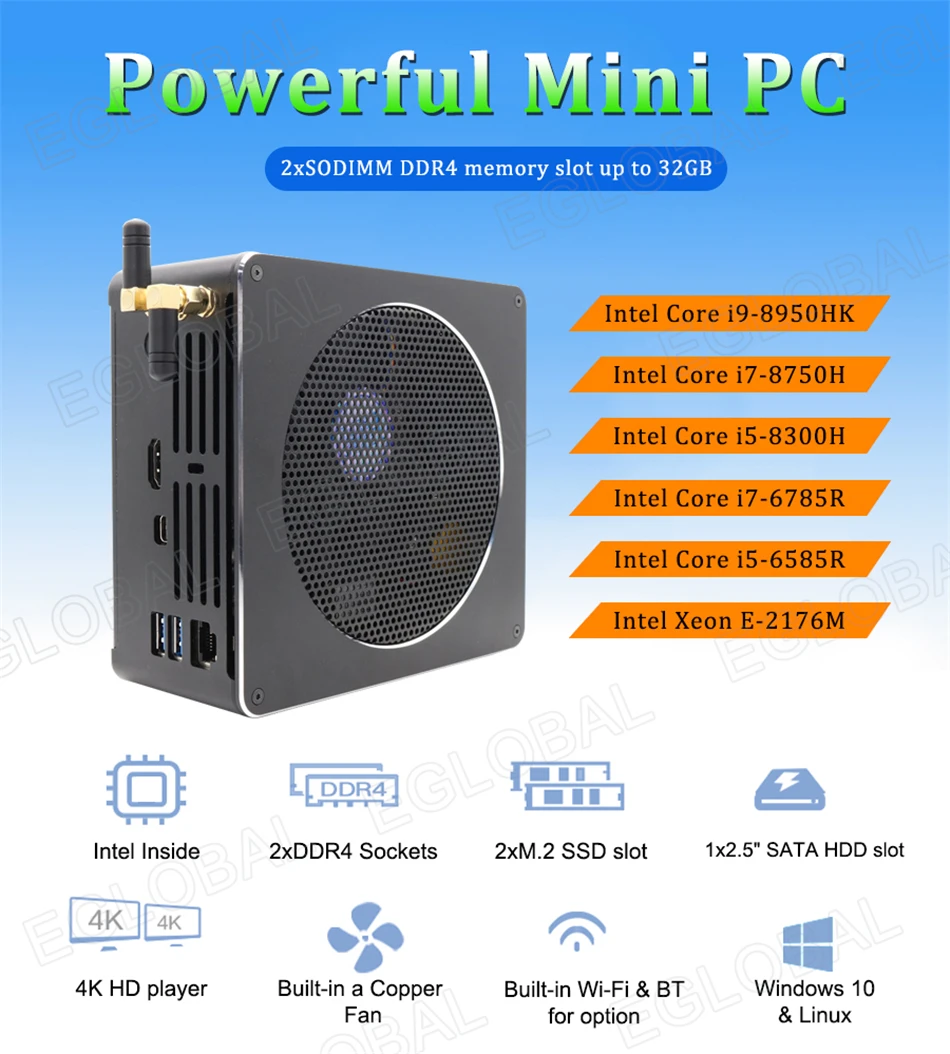

Gaming Mini PC i9 Xeon E-2186M i7 8850H 6 Core
Gaming Mini PC i9 Xeon E-2186M i7 8850H 6 Core 12 Threads Nuc Computer Win 10 Pro NVMe PCIe 2*DDR4 AC WiFi HDMI Mini DP
Big Sale for bundle with ram and storage:
1. Uprade DDR4 ram to Samsung 2666MHz free!
2. Upgrade strong signal Intel AC WiFi+Bluetooth free!
3. Uprade M.2 Sata SSD to fast M.2 NVMe/PCIe SSD free!

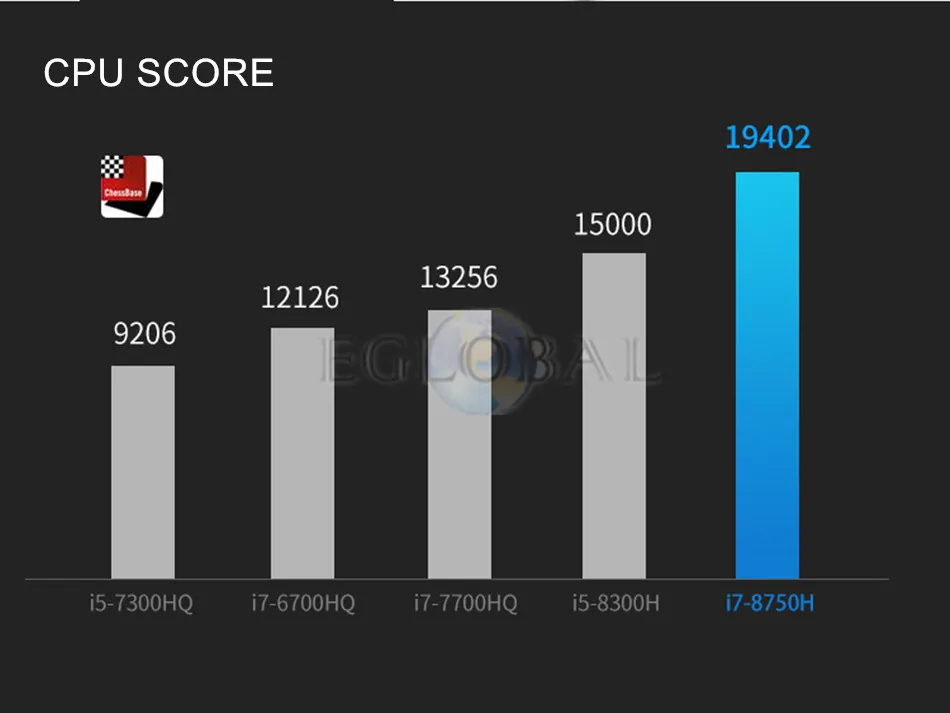

Processor parameter for referance from intel:
1. 8th Gen 14nm CPU Coffee Lake Intel Core i5 8300H 4 cores 8 threads 2.3GHz up to 4.0GHz 8MB cache TDP 45W UHD Graphics 630.
2 8th Gen 14nm CPU Coffee Lake Intel Core i7 8750H 6 cores 12 threads 2.2GHz up to 4.1GHz 9MB cache TDP 45W UHD Graphics 630.
3. 8th Gen 14nm CPU Coffee Lake Intel Core i7 8850H 6 cores 12 threads 2.6GHz up to 4.3GHz 9MB cache TDP 45W UHD Graphics 630.
4. 8th Gen 14nm CPU Coffee Lake Intel Xeon E-2186M 6 cores 12 threads 2.9GHz up to 4.8GHz 12MB cache TDP 45W UHD Graphics P630.
|CPU||Intel Core i5-8300H/Intel Core i7-8750H/Intel Core i7-8850H/Intel Xeon E-2186M|
|CPU install Method||BGA1440|
|Motherboard||120 x 120mm customized size|
|Code Name||Intel Coffee Lake|
|Chipset||Intel 100 series PCH|
|Memory||2 x SO-DDR4 SDRAM Slot, up to 64GB
Dual Channel, DDR4 2133/2400/2666 260pin
|Audio||Azalia Codec support 2.1 channel output
High Definition Audio Controller

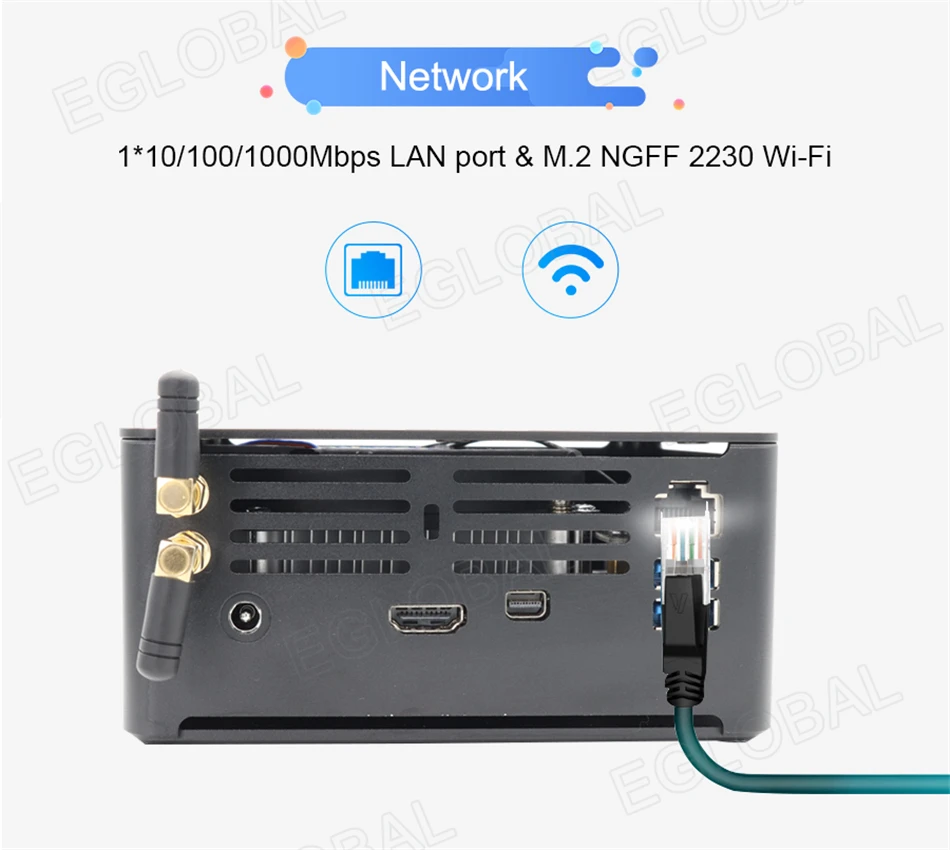

|Network||Onboard RTL8111 PCI-E Gigabit Ethernet NIC
10/100/1000 BaseT LAN
|Video||Intel® UHD Graphics 630|
|Switch||1 x Power On/Off Switch|
|Power||1 x 19V DC In|
|LED||1 x LED|

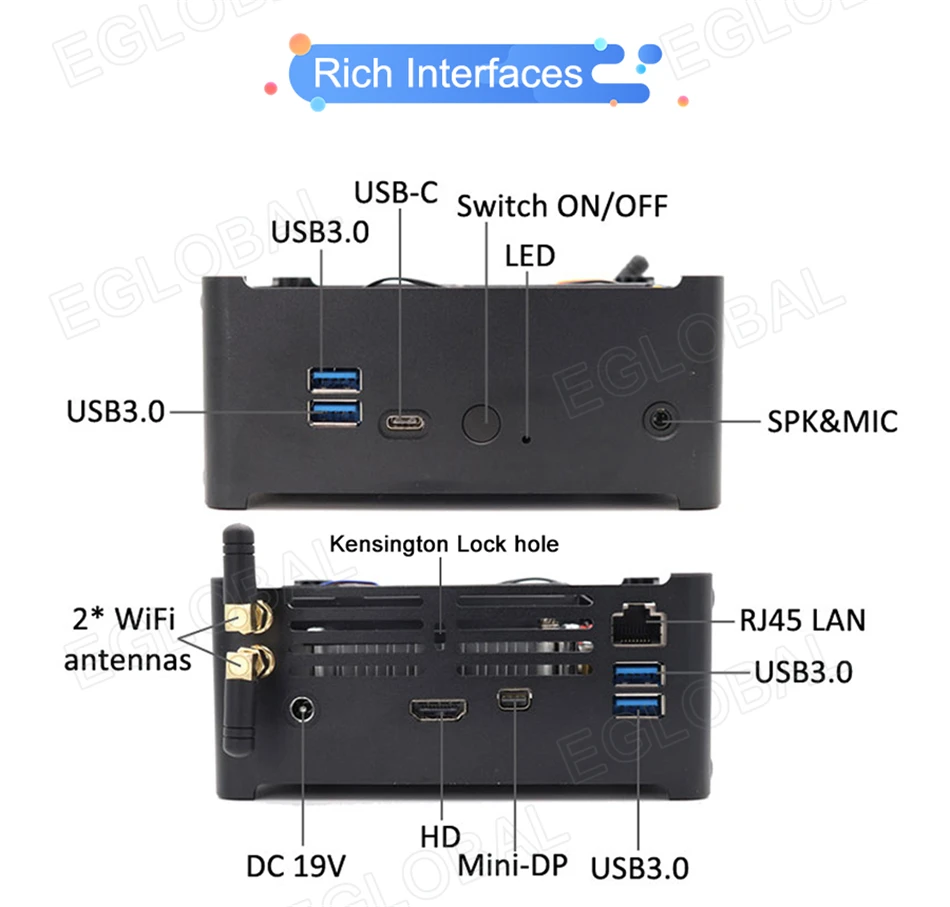

|USB||4 x USB3.0|
|USB-C||1 x Type-C USB3.1|

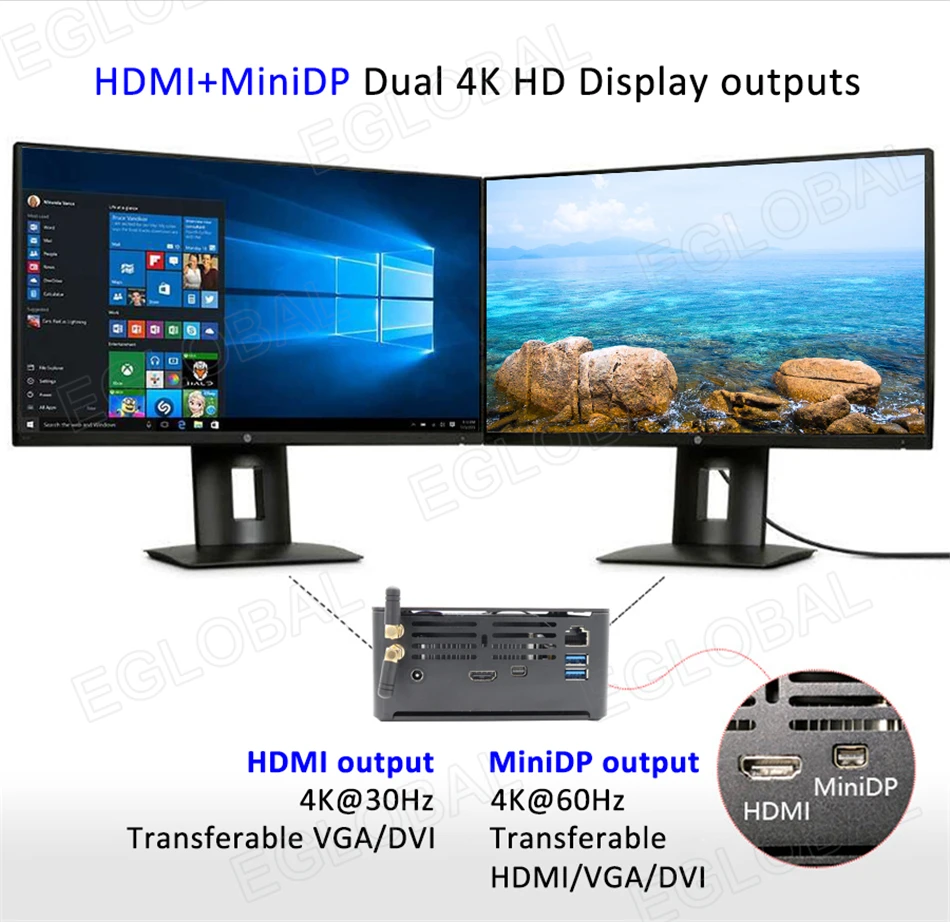

|Display||1 x Mini-DP, 1 x HDMI|
|LAN||1 x RJ45 Giga LAN|
|Audio||1 x Audio(MIC&SPK)|
|Others||1 x Kensington Lock hole|
|M.2||1 x M.2 slot for M.2 NGFF 22*80, up to 2TB(Only NVME), support 32Gb/s
1 x M.2 slot for M.2 NGFF 22*80, up to 2TB(NGFF/NVME), support 32Gb/s
|SATA||1 x SATA3.0 slot for 7/9.5mm SATA HDD or SSD, up to 3TB, support 6Gb/s|
|Module||1 x M.2 NGFF 2230 slot for Wi-Fi module|
|Antenna||2 x inner RF cables and 2 x external antennas|
|Power and Working Environment|
|Output||DC +12V~+19V, recommend 19V/3~5A|
|Operating Temperature||0/70 Centigrade|
|Storage Temperature||-20/+80 Centigrade|
|Relative Humidity||0%~90% (non-condensing)|
|Product Dimension & Details|
|Weight||Net 1.05kg, Gross 2.5kg|
|Shell||Brushed Black color aluminum alloy, a film covered on surface|
|Cooling Mode||Silent Cooling Fan|
|Functions||Support PXE, AWAL, RTC|
|Standard||1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, Wi-Fi antennas, 1xHDMI cable|
|Optional||1xMini DP to VGA adapter, 1xUser Manual|
Free Operating System: Default installed our trial activated OEM windows 10 pro English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install. Other systems we can install free are like Linux, Ubuntu etc if you need. Seller is NOT responsible and makes no compensation for trial OEM system.
Accessories as Ram, SSD, HDD, we use famous brand:samsung, micron, SanDisk, toshiba, hynix, crucial, liteon, kingfast, phison etc, What brand we use depends on our test and our stock.
